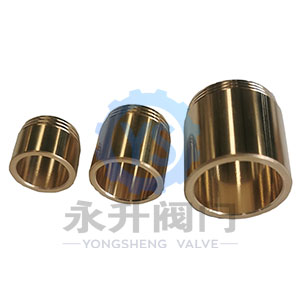

Name: Valve Accessories Bronze Butterfly Valve Bushing
Availability: InStock

Valve Accessories Bronze Butterfly Valve Bushing

Valve accessories refer to the parts or components to which the valve is assembled; or the parts or components to be re-installed after being damaged. Valve fittings can be divided into two types: standard fittings and optional fittings. Standard fittings refer to the auxiliary parts provided at random. Optional fittings refer to the parts that can enhance product functions and improve product performance in addition to the standard configuration.

Item No :
004
Color :
customization
Shipping Port :
Tianjin,Xingang

Inquiry now

Aluminum Bronze Butterfly Valve Bushing

Optional accessories refer to the components that can enhance product functions and improve product performance in addition to the standard configuration, and need to be purchased separately. Unlike the standard configuration, the use of optional accessories will not affect the use of the basic functions of the product. There are many types of optional accessories, and the optional products supported by different products are also different. Therefore, you should check the product description in advance when purchasing optional accessories, so as not to buy it and use it.

Next, we will mainly introduce the aluminum bronze valve bushing.

Element(wt%) C95400 C95800

Cu ≥83.0% ≥79.0%

Al 10.0-11.5% 8.5-9.5%

Fe 3.0-5.0% 3.5-4.5%

Ni ≤1.5% 4.0-5.0%

Mn ≤0.5% 0.8-1.5%

Technical Specifications

Component Materials / Options

Bushing C954/C958

Core Structural Features

Outstanding wear resistance and high load-bearing capacity

Excellent corrosion resistance

Good self-lubricating property and anti-seizing property

Outstanding thermal stability and safety

Applications

Ballast water and cooling water systems

Desalination and water treatment plants

Fire-fighting and bilge systems
