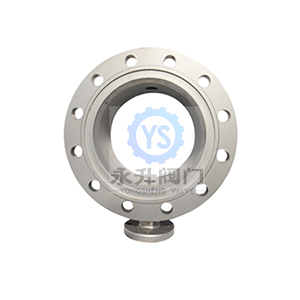

This Double Flange Stainless Steel Valve Body is specifically engineered for high-intensity industrial fluid control systems. Manufactured from premium-grade stainless steel, it delivers exceptional corrosion resistance and structural strength.
Its unique double-flange design not only ensures ultimate stability and vibration resistance in pipeline connections but also allows for convenient inline maintenance without the need to dismantle the entire piping network. Equipped with a standard ISO 5211 mounting pad, it perfectly supports the seamless integration of pneumatic or electric actuators. Widely utilized in demanding environments such as petrochemicals, shipbuilding, water treatment, and metallurgy, this valve body is the ideal solution for achieving precise flow regulation and zero leakage.
Item No :
010Color :
customizationShipping Port :
Tianjin,XingangDouble Flange Stainless Steel Valve Body
Engineered for demanding fluid control systems, the Double Flange Stainless Steel Valve Body delivers exceptional structural stability and severe-service reliability. Unlike standard configurations, the double-flanged design ensures secure, vibration-resistant connections and facilitates straightforward inline maintenance without disrupting the entire piping network.
Manufactured from high-grade stainless steel—including CF8, CF8M—these valve bodies provide superior resistance to corrosive media, chemical wear, and extreme environmental conditions.
Depending on pressure requirements, bodies are precision-cast for standard industrial fluid management or forged to withstand critical high-pressure environments. When integrated with resilient internal components, the body forms a zero-leakage barrier essential for hazardous or high-purity applications.
| Component | Materials / Options |
|---|---|
| Body | CF8,CF8M,Duplex |
| Size | From DN40 to DN1600 |
| Valve Fitting Can be Customized according to requirements of Customers. |
Q1: What is the maximum temperature the valve body can handle?
A: When paired with a standard PTFE lining, the unit can operate reliably in temperatures ranging from -20°C to 200°C (-4°F to 392°F). High-performance metal-seated configurations can be customized for significantly higher temperature thresholds.
Q2: Can this flanged valve be used for precise flow regulation?
A: Yes. The rigid double-flange installation eliminates pipeline vibration, providing a highly stable foundation. Combined with a quarter-turn disc and low-friction interior, it ensures accurate throttling and dependable on-off control.
Q3: Does the valve body support automated control systems?
A: Absolutely. Our valve bodies are designed with a standardized ISO 5211 mounting pad, ensuring seamless, direct-mount installation of pneumatic, electric, or hydraulic actuators for facility automation.
