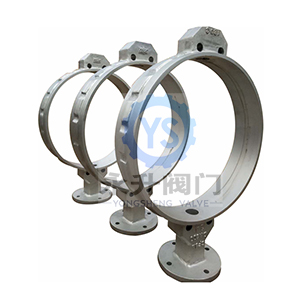

The Semi Lug Type Stainless Steel Valve Body offers a smart, space-saving solution for industrial fluid control. By incorporating strategically placed alignment lugs, it guarantees quick and accurate installation while maintaining a much lighter profile than traditional flanged valves.
Manufactured from premium CF8, CF8M stainless steel, it provides outstanding corrosion resistance. Integrated with an ISO 5211 mounting pad for effortless actuator automation, this valve body is highly recommended for space-restricted applications in marine, petrochemical, and municipal water systems.
Item No :
007Color :
customizationShipping Port :
Tianjin,XingangSemi Lug Type Stainless Steel Valve Body
Optimize your piping infrastructure with the Semi Lug Type Stainless Steel Valve Body, engineered to deliver the perfect balance between structural integrity and spatial efficiency. Designed with strategically placed alignment lugs, this valve body ensures quick, precise centering between pipe flanges, effectively eliminating the installation struggles commonly associated with traditional wafer-style valves.
Crafted from premium corrosion-resistant alloys—including CF8, CF8M stainless steel—it provides robust protection against harsh chemicals, saline environments, and abrasive media. The semi-lug configuration significantly reduces overall weight and dimensional footprint compared to fully flanged alternatives, making it a highly cost-effective solution for complex or space-restricted pipe networks.
Whether manufactured via advanced casting techniques for standard flow management or precision forging for higher-stress zones, this body guarantees a secure, rigid housing for internal sealing components to maintain long-term, leak-proof performance.
| Component | Materials / Options |
|---|---|
| Body | CF8,CF8M,Duplex |
| Size | From DN40 to DN1600 |
| Valve Fitting Can be Customized according to requirements of Customers. |
Maritime & Shipbuilding: Exceptional durability against seawater and saline breezes.
Municipal Water Systems: Compact design ideal for tight spaces in water supply and drainage networks.
Petrochemical Processing: Safe containment and regulation of aggressive chemical fluids.
Fire Protection & Metallurgy: Quick integration and dependable operation under demanding conditions.
Q1: What is the thermal limit for this valve body?
A: When outfitted with our standard PTFE lining, the operational temperature spans safely from -20°C up to 200°C (-4°F to 392°F). We also offer customized metal-seated options for systems requiring higher thermal resistance.
Q2: Does the semi-lug design offer advantages over standard wafer types?
A: Yes. The integrated lugs act as built-in guides, making alignment between pipe flanges much faster and more accurate. It reduces the risk of incorrect installation while remaining significantly lighter than a full-flange valve.
Q3: How easily can this valve be automated?
A: Automation is extremely straightforward. The body features an integrated ISO 5211 top mounting pad, permitting the direct installation of electric, pneumatic, or hydraulic actuators without requiring custom mounting brackets.
