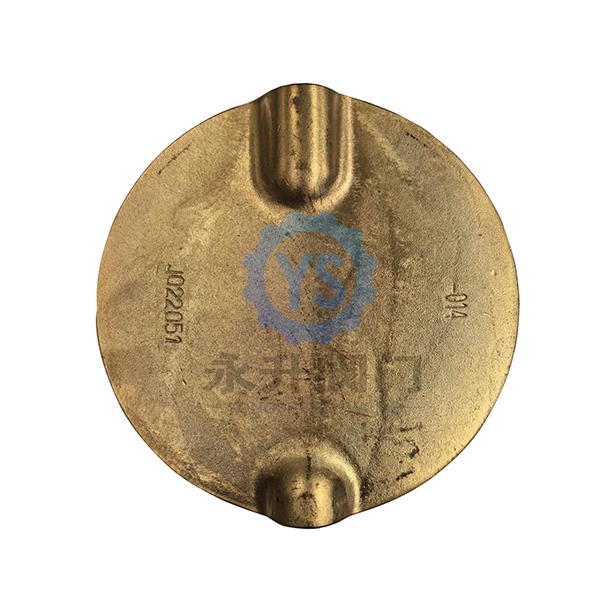

This high-performance Aluminum Bronze Butterfly Valve Disc (available in C95400 and C95800) is specifically engineered for severe marine and highly corrosive fluid environments. The aluminum bronze material delivers exceptional resistance to seawater corrosion, pitting, and dezincification, while maintaining outstanding mechanical strength and impact resistance. Its precision-machined, streamlined profile minimizes flow resistance and ensures a perfect, zero-leakage seal when paired with elastomeric soft seats like EPDM, NBR, or Viton. It is an ideal core component for ballast water systems, desalination plants, fire-fighting networks, and industrial cooling systems handling high-salinity media.
Item No :
004Color :
customizationShipping Port :
Tianjin,XingangAluminum Bronze Disc Butterfly Valve Disc
Here we are mainly talking about the butterfly valve disc, which is installed in the diameter direction of the pipeline. Butterfly valve, also known as flap valve, is a kind of regulating valve with simple structure. In the cylindrical channel of the valve body of the butterfly valve, the disc-shaped butterfly plate rotates around the valve shaft to achieve opening and closing, and the rotation angle is between 0° and 90°. When it is rotated to 90°, the valve is fully open.
Next, we will mainly introduce the aluminum bronze valve plate.
| Element(wt%) | C95400 | C95800 |
| Cu | ≥83.0% | ≥79.0% |
| Al | 10.0-11.5% | 8.5-9.5% |
| Fe | 3.0-5.0% | 3.5-4.5% |
| Ni | ≤1.5% | 4.0-5.0% |
| Mn | ≤0.5% | 0.8-1.5% |
| Component | Materials / Options |
|---|---|
| Disc | C954/C958 |
1.Excellent resistance to seawater and saline media
2.High strength and impact resistance – reliable in frequent operation
3.Anti-dezincification and erosion-resistant
4.Good casting performance and tight dimensional tolerances
5.Compatible with soft seat materials such as EPDM, NBR, and Viton
Q1: Why choose an Aluminum Bronze (C954/C958) disc over standard stainless steel?
A: Aluminum bronze offers superior natural resistance to seawater corrosion, pitting, and marine bio-fouling compared to standard stainless steel. Its excellent anti-dezincification and erosion-resistant properties make it the ultimate, long-lasting choice for offshore, marine, and desalination applications.
Q2: What is the primary difference between C95400 and C95800 materials?
A: C95400 is a versatile, high-strength aluminum bronze excellent for general wear and impact resistance. C95800, on the other hand, contains a higher nickel content (4.0-5.0%), which significantly boosts its corrosion resistance and toughness, making it the premium standard for severe saline and continuous seawater exposure.
Q3: Which valve seat materials are compatible with these discs?
A: The precision-machined, highly polished edge of our aluminum bronze disc pairs perfectly with a variety of elastomeric soft seats, including EPDM, NBR (Buna-N), and Viton (FKM). The ideal seat selection will depend on your system's specific media, temperature range, and operating pressure.
